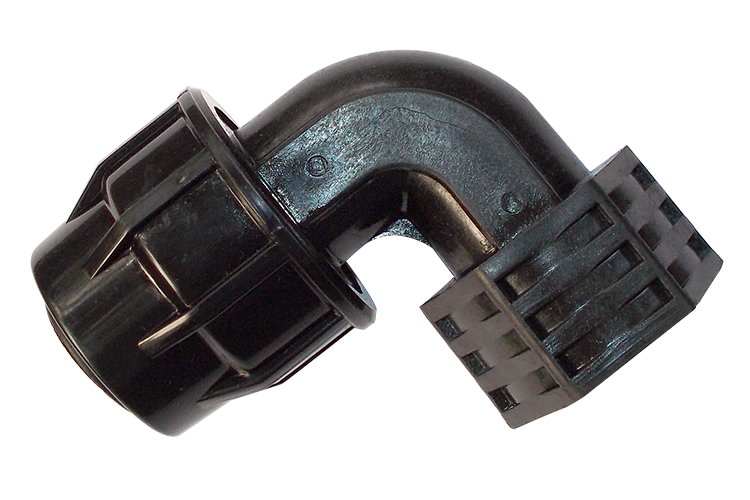

Rainport® Female Threaded Elbow
Rainport® Female Threaded Elbow
Technical Specifications
| Size(mm) | Code | Bag | Box | ||
| Qty. (nos.) | Qty (nos.) | Wt(kg) | Code | ||
| 25 OD CL1 x 3/4" | RPFTE2534CL1 | N.A. | 500 | 15.8 | B |
| 25 OD CL2x 3/4" | RPFTE2534 | N.A. | 500 | 15.8 | B |
| 32 OD CL1 x 1" | RPFTE3201CL1 | N.A. | 250 | 14.3 | B |
| 32 OD CL2 x 1" | RPFTE3201 | N.A. | 250 | 14.3 | B |
Applications
- Female Threaded Elbow is used to connect plain laterals (25 mm & 32 mm) in angular direction i.e 90 deg. to a threaded connection
Features & Benefits
- "Additional barbs provided: Additional barbs provided to prevent snap out of tube"
- "Innovative Cap for holding: Special cap provided to hold tube from outer side."
- Manufactured from tough engineering plastic
- Non corrosive & resistant to chemicals
- UV resistant fittings
